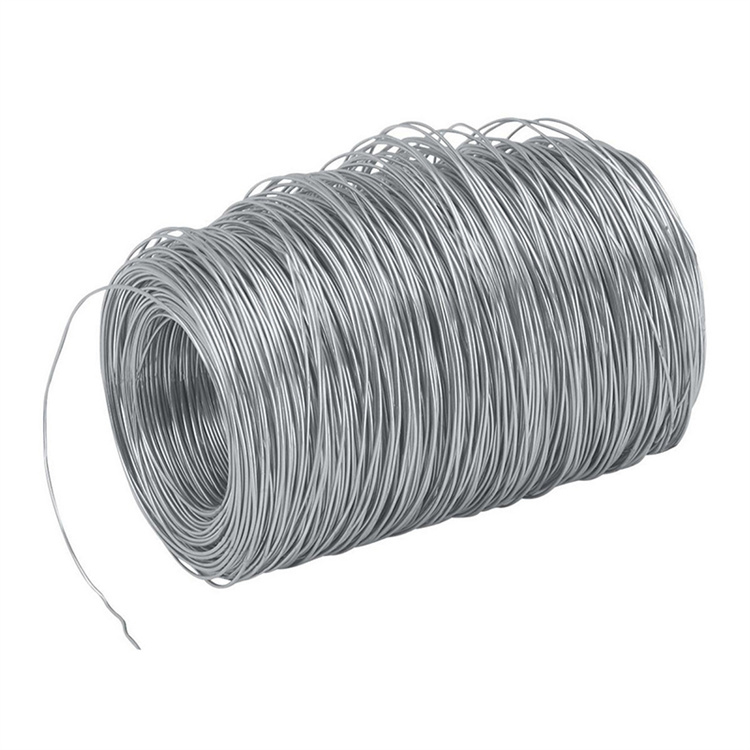

Hot-dipped galvanized iron wire
Hot dipped galvanized wire belongs to the primary wire products of galvanization. Hot dipped galvanized iron wire is made with choice low carbon steel wire, through wire drawing, wire annealing,rust removing and acid washing, zinc plating and coiling. The common sizes of hot dipped galvanized are from 8 gauge to 16 gauge, we also accept smaller or bigger diameter for customers' choices. Hot dipped galvanized wire with firm zinc coating provides strong corrosion resistance and high tensile strength. This kind of wire is widely used for making handicrafts, woven wire mesh, forming fencing mesh, packing products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat: 40-240g/m²
Tensile strength: 35-70kg/mm²
Elongation: 10%-25%
Packing: 0.1-1000kgs/coil, coil with plastic inside and hessian cloth outside or weave bag outside
Best quality 10 gauge steel wire galvanized steel wire

Electro galvanized iron wire
Electro galvanized wire, also called cold galvanized wire, electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. The processing of this wire is to use electrolytic equipment for galvanizing. In general, the zinc coating is not very thick, but the electro galvanized wire has enough anti-corrosion and anti-oxidation. In addition, the zinc coating surface is very average, smooth and bright. Electro galvanized wire zinc coated commonly is 8-50 g/m2. This wire is mainly used to make nails and wire ropes, wire mesh and fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28
Zinc coat: 8-18g/m²
Tensile strength: 35-70kg/mm²
Elongation: 10%-25%
Packing: 0.1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave bag outside
Electro galvanized wire
1. Diameter: BWG23-BWG6 (0.6mm-5mm)
2. Zinc Coated: 10-30g/mm²
3. Elongation: ≥18%
4. Packing: 1-500kg/roll, PVC inside, woven bag outside

Specifications
1.Diameter range: 0.2-4.5mm
2.Tensile Strength: 300~1850 N/mm²
3.Standard: GB4357, DIN17223, JIS G 3521, A227, EN10270
4.Main application: making spring, mattress, wire rope.
5.Packing: pack in plastic spool, reel, bag, drum, carton and so on

Steel wire material: SAE1006,SAE1008,SAE1010,Q195,Q235,C45,C50,C55,C60,C65,
65Mn,C72A,C72B,C80,C82B,CT9A,GCr15, AND SO ON
The Raw Material
 (45# 60# 65# 62A 72A 65Mn 70# 82A 82B T9A 1008 1006 18A 22A)
